In our last post, we looked at the digital architecture of our latest custom explorer boots—sculpting the organic folds in ZBrush, engineering the mould boxes in Fusion 360, and using digital booleans to check for undercuts before hitting print.
With the digital boxes ticked, it was time to move off the screens, clear the workbench, and get our hands dirty on the physical casting bench. Here is how we took those digital files and turned them into production-ready, hard-wearing puppet footwear.
Caption: The physical 3D-printed mould matrix laid out on the bench, ready for the silicone.
Material Science: Toughness vs. Flesh
When we're casting character skins or soft body parts, our go-to material is usually an ultra-soft silicone like Platsil Gel 00. It gives you that beautiful, organic realistic movement and squish.
Footwear, however, is a completely different beast.
Puppet boots take an absolute beating on a stop-motion stage. They are constantly twisted, clamped, and subjected to the heavy mechanical stress of under-set tie-downs. If you cast them in an ultra-soft gel, they tear or warp under pressure. For these explorer boots, we stepped up the structural toughness and opted for Platsil Gel 10. It provides the perfect balance: rigid enough to hold its shape and grip the set, but flexible enough to crack a beautiful, natural crunch when the character takes a stride.
The Multi-Part Pour: Zero-Bleed Colour Separation
If you try to pour a multi-coloured boot in a single mould, you end up playing a frustrating game of surgical masking, and your colour lines almost always bleed. Our solution was to physically split the boot into four independent component moulds:
-
The Soles: Cast in a rugged, deep dark brown.
-
The Main Boot Upper: Cast in a warm, light brown leather tone.
-
The Ankle Wraps: Cast in a pale, creamy fabric tone.
-
The Buckles: Cast in a sharp, silvery grey.
Caption: De-moulding the individual components. Clean, dedicated colour pours with zero bleeding lines.
By casting each piece separately in its own dedicated batch of pigmented silicone, we achieved absolutely pristine colour lines. Once cured and pulled, we used the exact same Platsil compound as a chemical "glue" to fuse the parts together. Because it’s the same material, the components bond at a molecular level, creating a single, indestructible, multi-coloured boot.
Caption: Pristine component separation. Fusing the independent casts together creates a clean finish that paint simply can't match.
The Final Touch: Bringing out the Detail
Even with perfect casting, raw silicone can look a bit flat under intense studio lighting. To give the boots some history and depth, we finished them with a custom pigment wash.
By thinning down a small batch of clear Platsil gel with a solvent and adding a dark, earthy pigment, we created a translucent wash. We brushed this over the cured boots, working it deep into the ZBrush-sculpted leather grain and fabric folds, then buffed away the excess. The dark wash stays trapped in the recesses, instantly popping the fine surface details and giving the boots a beautifully weathered, lived-in look.

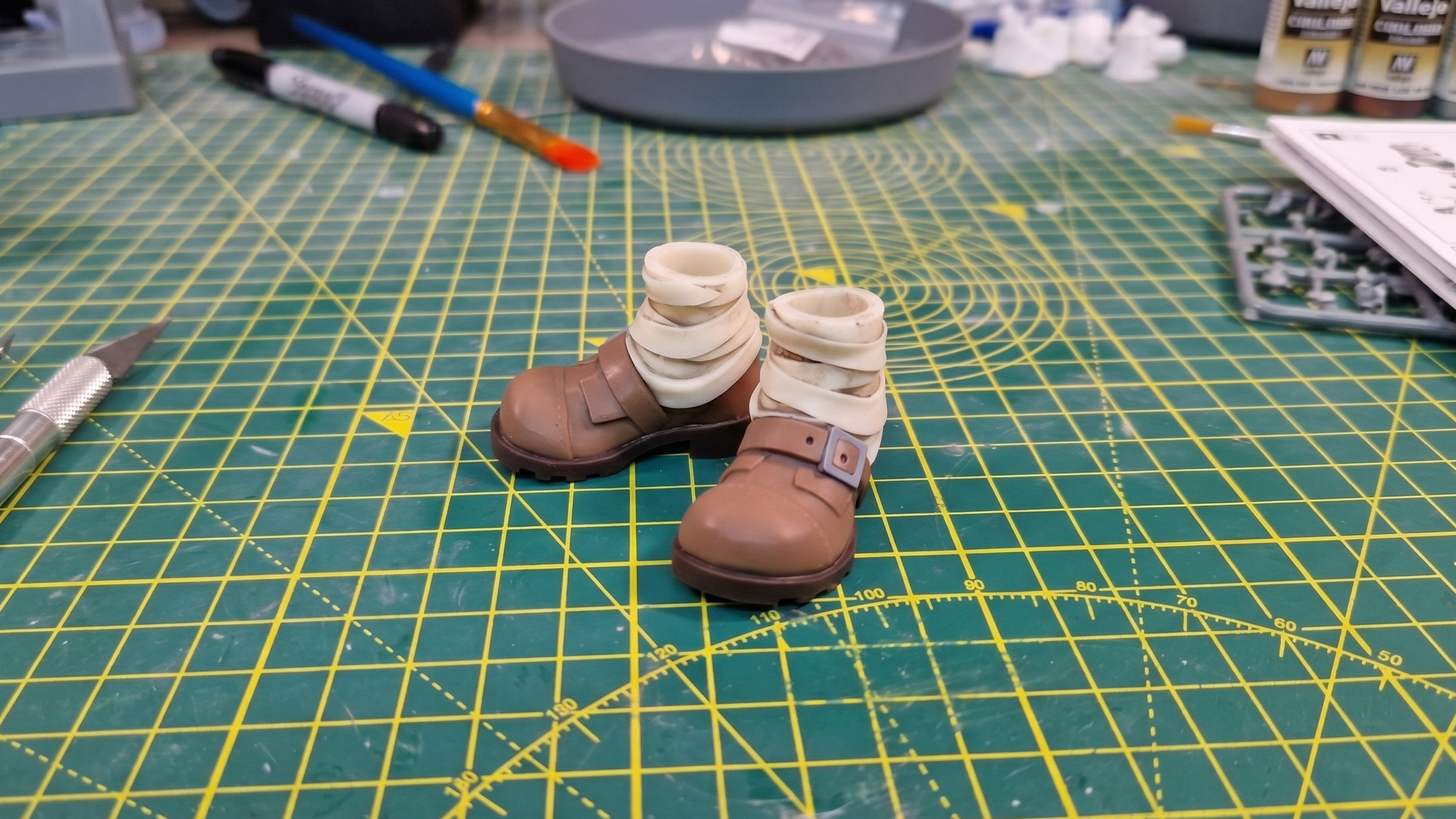

Caption: Fully assembled, fused pairs sitting on the bench right before final stage fitting.
The Result
Thanks to the internal digital plugs we engineered into the moulds, the finished boots slip right onto the puppet's armature feet like a glove. They are tough, completely zero-bleed, and ready to handle whatever the animators throw at them on stage.
Caption: Mounted directly onto the ball-and-socket joints. Rock-solid, functional, and stage-ready.
The printers are already clean, the bench is wiped down, and the next project is already lining up. Head over to our Instagram @julianclarkstudios to catch the video clips of these cool little boots!
— Jools
