A polished puppet on screen is only as good as its foundation. When it comes to stop-motion animation, footwear isn't just a costume piece—it's a critical mechanical component. It needs to look organic, flex naturally without tearing, and perfectly house the internal armature feet for rock-solid tie-downs.
For a current project in the studio, we needed a pair of rugged explorer-style boots. Standard one-piece silicone pours often result in muddy detail and bleeding colours. To get a crisp, production-grade result, we took a highly technical, multi-part digital approach.
Here is how Phase 1 came together on the digital bench.
Phase 1: The ZBrush to Fusion 360 Software Dance
Traditional mould making requires hours of hand-sculpting, but our pipeline bridges organic art with absolute engineering precision.
The journey started in ZBrush, where the boot was organically sculpted to match the character’s aesthetic, focusing on the heavy fabric folds of the ankle wraps and the rugged leather textures of the upper.
From there, the asset was brought into Fusion 360 to engineer the exact outer mould boxes, ensuring perfect alignment pins and wall thicknesses, before heading back into ZBrush for the final, complex boolean operations.
The Digital Pro-Tip: The massive advantage of a digital pipeline is the ability to run a "simulated cast" before a single drop of resin is printed. By digitally casting the boolean operation on screen, we can catch undercuts, trap points, or flow issues before committing to a physical print, saving days of physical trial and error.
The Strategy: Splitting Components for Flawless Colour
To achieve completely flawless colour separation, we didn't design this as a single boot. Instead, the asset was digitally exploded into four distinct mechanical components: the heavy soles, the main leather boot upper, the individual buckles, and the fabric ankle wraps.
By printing independent moulds for each part, we can cast them in separate, dedicated batches of pigmented silicone. This completely eliminates bleeding lines. Once cured, these perfectly matching components are chemically "glued" together using the exact same silicone compound, resulting in a single, structurally unified boot with ultra-sharp colour definition.

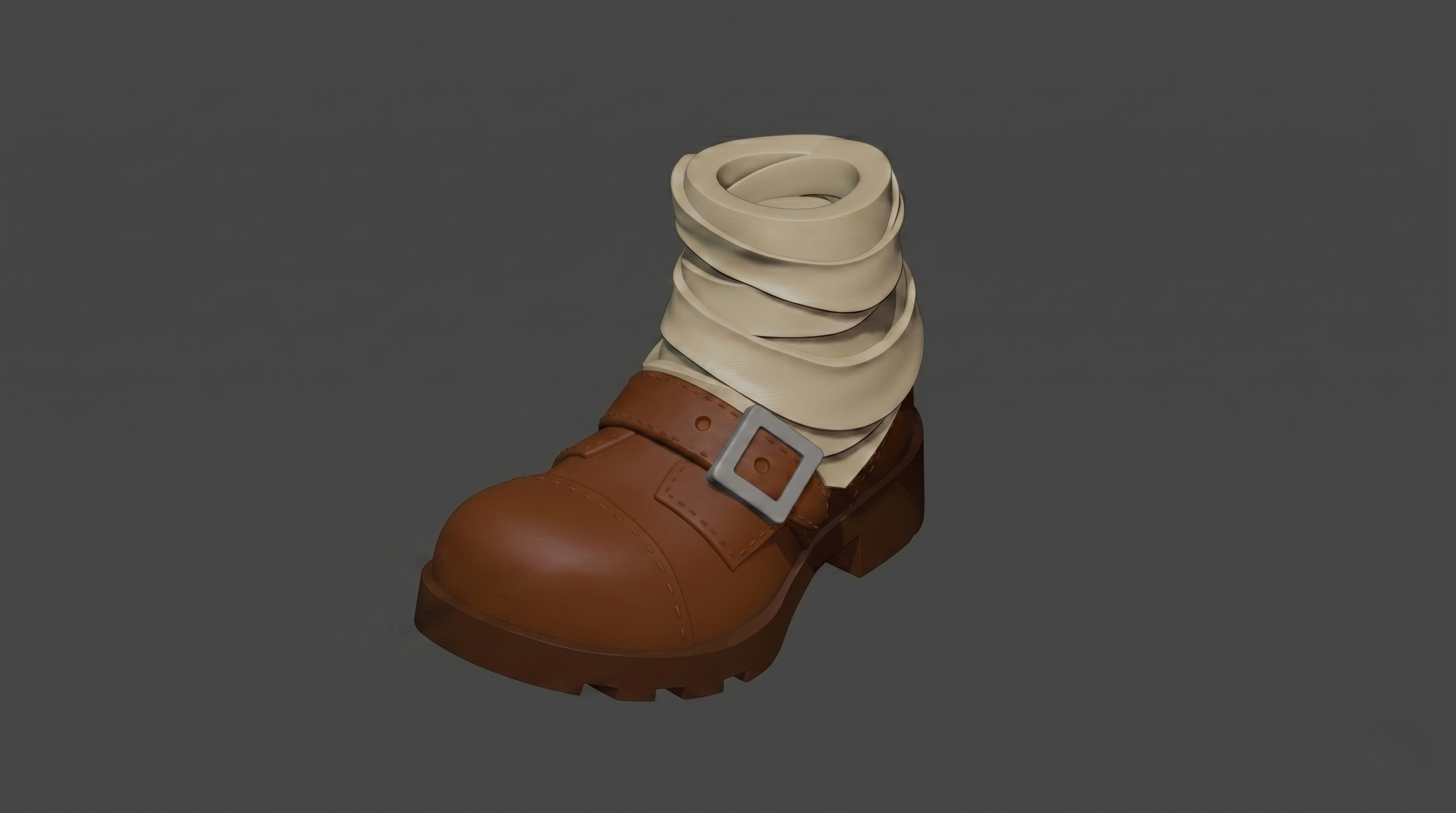

The component breakout. Splitting the boot into four digital parts allows for pristine, independent colour casting.
Designing from the Inside Out: The Core Cavity
A major hurdle with puppet footwear is making sure the internal armature foot actually fits snugly inside the final cast. To solve this, we modelled custom digital "plugs" that sit precisely inside the mould cavities. When the silicone cures and the plugs are pulled, they leave a perfect, clean void—allowing the armature feet to simply slip into the boot just like a real shoe.
The most complex part of this design was the curved intersection where the boot upper meets the sole. Designing the two parts to interlock digitally meant we could guarantee a flush, seamless fit after physical casting.
A sneak peek at the Fusion 360 engineered mould box architecture, complete with interlocking registration keys.
Next Up: Printing and Pouring Platsil Gel 10
Now that the digital architecture is locked, the 3D printers are running, and we're moving over to the physical casting bench.
In the next update, we’ll look at the physical pour, why we're swapping our standard, ultra-soft "flesh" silicones for a much tougher Platsil Gel 10 compound to withstand stage wear, and the final pigment wash process that brings these details to life.
Stay tuned.
— Julian
